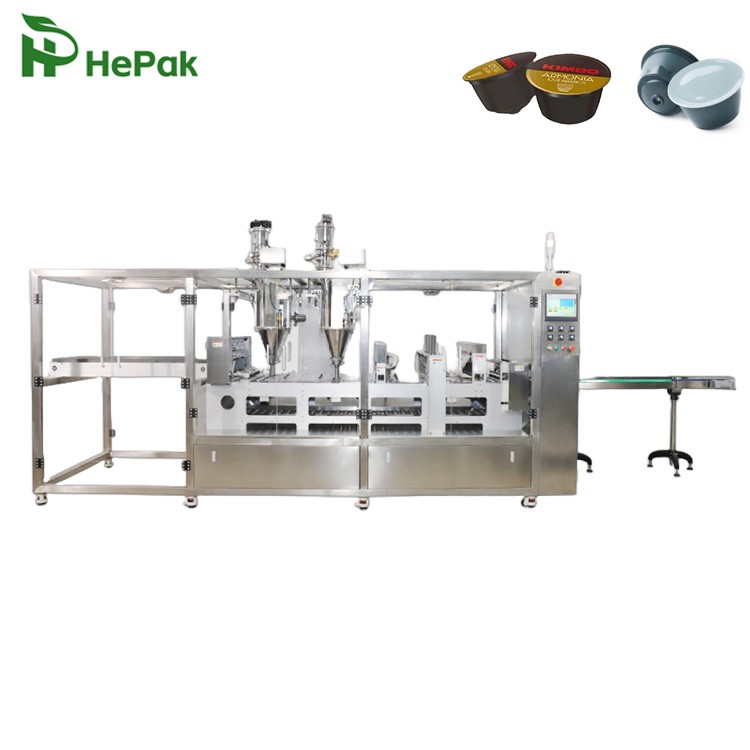

Linear DOLCE gusto FILLING SEALING MACHINE
1：Brief Introduce
Dolce Gusto has emerged as the most rapidly expanding model in recent years.
It offers greater capacity compared to Nespresso and features a dual-membrane design.
The machine is versatile and capable of filling capsules of various specifications.
It boasts a short filling cycle and high production output.
Fully automated, it supports large-scale production.
Users can select the number of filling heads based on their production requirements.
The touchscreen interface provides a user-friendly experience, displaying real-time production status, operational steps, filling methods, and more
2：Standard Functions of dolce gusto capsules filling machine
Automatic Sort and feed the empty Dolce Gusto capsules.
Automatic Detect the empty cup whether capsules well loaded on the machine.
Servo motor filling ground coffee.
Clean the edge of the cup powder and press the powder.
NO-EDGE cutting and sealing inside film/paper filter
NO-EDGE cutting and sealing outside plastic/aluminum foil
Heat-sealed twice to ensure that the cup is well sealed.
Output to the conveyor

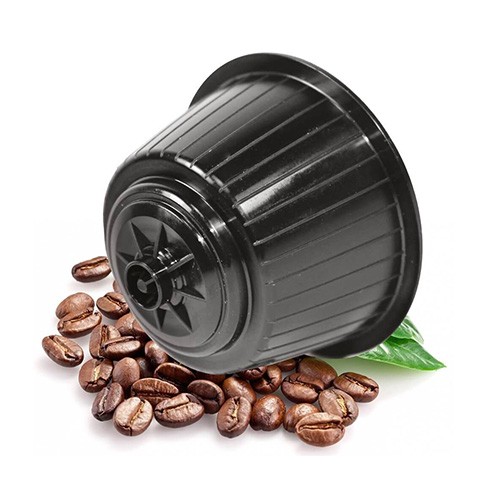

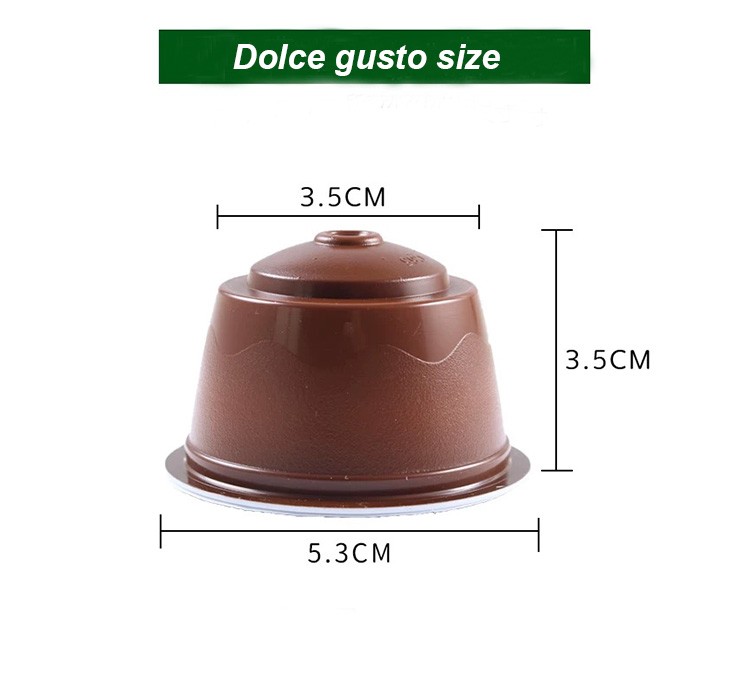

3.Dolce gusto sample
4.Technical parameters:
Model | HP-L4 |
Suitable product | Coffee, chocolate, tea, milk etc. |
Capacity | 160-200cups/min (adjustable) |
Filling type | The Servo motor is a driven auger filler |
Filling accuracy | ±0.1g-0.15g |
Sealing type | Pneumatically driven heat and seal, Omron precise temperature controller to adjust |
Voltage | 3 phase 220V @ 50/60hz - 3kw(by customer) |
Dimension | 6500*1200*2500mm |
Weight | 1800kg |
Compressed air consumption | ≥0.8Mpa／300L per minute |
5.Characteristics:
Efficient Capsule Feeding System: Specially designed to reduce labor and operational costs.
Fully Automated Production Line: Equipped with advanced sensors to intelligently detect and respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, and more.
Reliable Control System: Powered by Omron for consistent performance, with options for other brands like Allen Bradley, Schneider, or Mitsubishi based on your preference.
Precision Filling: Servo motor-controlled filler ensures high accuracy with a stable error margin of just 0.2 grams.
Premium Components: Built with top-tier electronic and pneumatic parts from globally recognized brands in the USA, Japan, Germany, and France.
Durable Construction: Designed for longevity, with the majority of the machine made from stainless steel 304. All product-contact parts use food-grade SS304.
User-Friendly: The Dolce Gusto filling and sealing machine is simple to operate and maintain.
